φ5mm PCB mounting current transformer 1000:1 10A 9.2thickness

ZEMCT132 Current Transformer
Small size,high accuracy,good consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZEMCT132 Current Transformer

Small size, high accuracy, good consistency, for current and power measurement

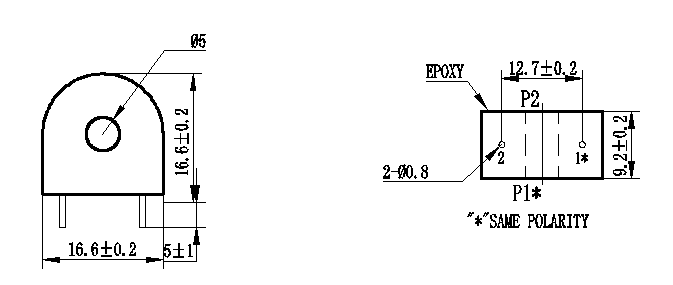

Structural parameter:


                      Front view                                                 Bottom view


The main technical parameter

Model

ZEMCT132

primary current

0~10A50Ω

secondary current

5mA at input 5A

turns ratio

1000:1

phase angle error

≤15

  (input 5A, sampling resistor 50Ω

Accuracy class

0.2

linearity

0.2%5%dot~120%dot

Permissible error

-0.2%≤f≤+0.2% (input 5A, sampling resistor 50Ω

isolation voltage

4500V

application

Precise measurement of current and power

Encapsulation

Epoxy

installation

PCB mounting

operating temperature

-40℃~+85


Direction for use

ZEMCT132-

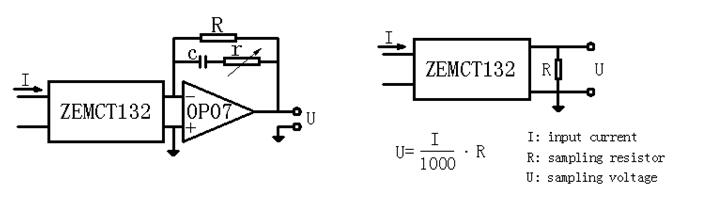

                                          Figure Ⅰ                                                      FigureⅡ

1. The typical usage of the product is for the active output (Figure Ⅰ). R is a sampling resistor, c and r is used for phase compensation.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).

3. The instructions are for reference only, specific parameter is subject to specifications (acknowledgment).
