φ5mm PCB mounting current transformer 100A 2000:1

ZMCT101B current transformer
Small Size, wide linear range,mainly for power automation protection sampling
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZMCT101B current transformer

Small Size, wide linear rangemainly for power automation protection sampling

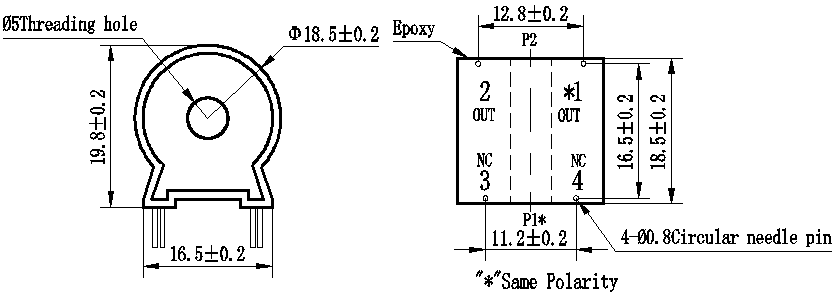

Structural parameter:




                                              12pin:secondary output34pin:empty pin

                         Front view                                           Bottom view


The main technical parameters

Model

ZMCT101B

     input current

0~100A sampling resistor 20Ω

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤60' (Input 5A, sampling resistor 20Ω

Accuracy

0.5

linearity

≤0.3%   (5%dot and 120%dot)

Permissible error

-0.5%≤f≤+0.5%  Input 5A, sampling resistor 20Ω

isolation voltage

4500V

application

power automation protection sampling

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40℃~+70℃

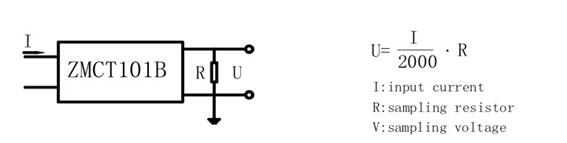

The wiring diagram of the typical usage

ZMCT101B-

1. ZMCT101B used for protection, typical usage as shown.

2. Empty pin can not be grounded.
