φ5mm PCB mounting current transformer 2000:1 30A 0.2class

ZMCT101D current transformer
Small size,high accuracy,food consistency,For accurate current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZMCT101D current transformer

Small sizehigh accuracyfood consistencyFor accurate current and power measurement



Structural parameter:

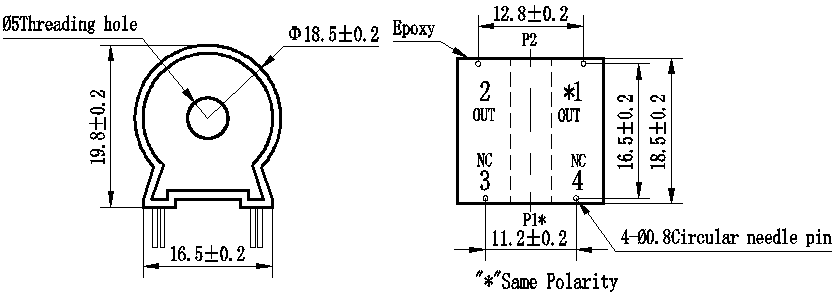

                              12pin: secondary output34pin: empty pin

                                          Front view                                            Bottom view





The main technical parameters

Model

ZMCT101D

   input current

0~30A  sampling resistor 100Ω

Rated output current

2.5mA at Input 5A

turns ratio

2000:1

phase angle error

≤10' (input 5Asampling resistor 100Ω

Accuracy

0.2

linearity

≤0.1% 5%dot and 120%dot

Permissible error

-0.2%≤f≤+0.2%  input 5Asampling resistor 100Ω

isolation voltage

4500V

application

accurate current and power measurement

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40℃~+70℃


Direction for use

ZMCT101D -

                                                             Figure Ⅰ                                  FigureⅡ

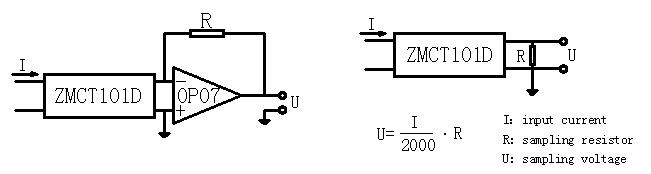

1. ZMCT101D used for the measurement, the typical usage is shown in Figure Ⅰand Figure Ⅱ.

2. Empty pin can not be grounded
