φ5mm PCB mounting Current transformer 2000:1 20A

ZMCT102 Current Transformer
Small size,high accuracy,good consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZMCT102 Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement

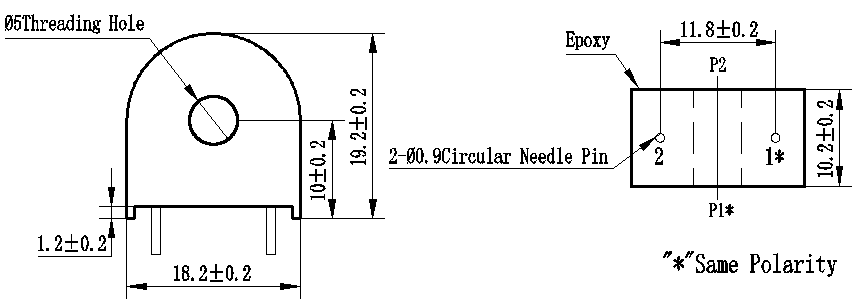

Structural parameter:




                       Front view                                                                   Bottom vie


The main technical parameters

Model

ZMCT102

 input current

0-20A100Ω

Output current

2.5mA at 5A

turns ratio

2000:1

phase angle error

≤20

input 1Asampling resistor 100Ω

linearity

0.2%5%dot~120%dot of 5A

Permissible error

-0.2%≤f≤+0.2%

input 1Asampling resistor 100Ω

application

current and power measurement

isolation voltage

4500V

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40℃~+85℃


Direction for use

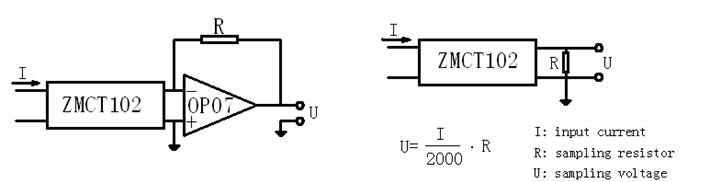

ZMCT102-

                                                  Figure Ⅰ                                                            FigureⅡ

1. The typical usage of the product is for the active output ( Figure Ⅰ) . R is a sampling resistor

2. The product can be directly through the resistance sampling , easy to use ( FigureⅡ).
