φ5mm PCB mounting Current transformer 2000:1 20A 0.1class

ZMCT102AA Current Transformer
Small size,high accuracy,good consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT102AA Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement

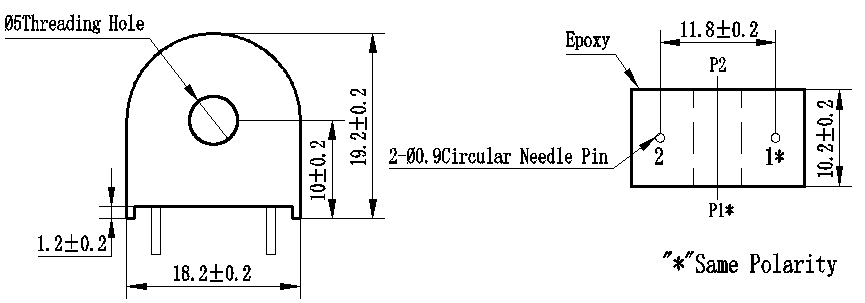

Structural parameter:




                                  Front view                                                                   Bottom view








Main technical parameters

Model

ZMCT102AA

 input current

0-20A100Ω

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

5%dot ~120% dotPhase difference value between the two points ≤10sampling resistor 100Ω

linear range

0~20Asampling resistor 100Ω

linearity

0.1%5%dot~120%dot

Permissible error

-0.1%≤f≤+0.1%input 1Asampling resistor 100Ω

application

4500V

isolation voltage

High precision measurement of current and power

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40℃~+85℃


Direction for use

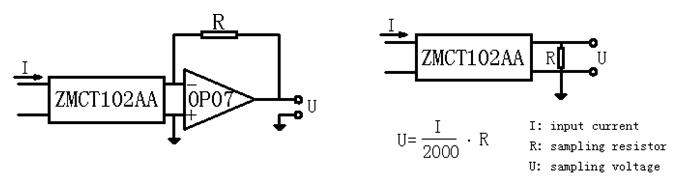

ZMCT102AA-

                                                 Figure Ⅰ                                                 FigureⅡ

1. The typical usage of the product is for the active output ( Figure Ⅰ) . R is a sampling resistor

2. The product can be directly through the resistance sampling , easy to use ( FigureⅡ).
