φ6.5mm PCB mounting current transformer 2500:1 70A

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers .Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT116A  Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement



Structural parameters:


              Remarks:  Primary input: straight- through type( make the measured circuit be through the hole)

                     Secndary output:12pin    empty pins: 34pin

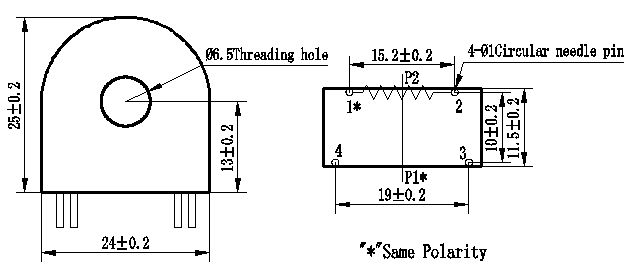

                                            Front view                                 Bottom view




The main technical parameters

Model

ZMCT116A

input current

0~70A100Ω

Rated output current

2mA at 5A

turns ratio

2500:1

phase angle error

≤20input 1Asampling resistor 10

current range

0~70Asampling resistor 100Ω

linearity

0.1%5%dot~120%dot

Permissible error

-0.2%≤f≤+0.2%input 1Asampling resistor 100Ω

isolation voltage

4500V

application

current and power measurement

Encapsulation

Epoxy

installation

PCB mountingPin Length>3mm

operating temperature

-40℃~+85℃


Direction for use

ZMCT116A-

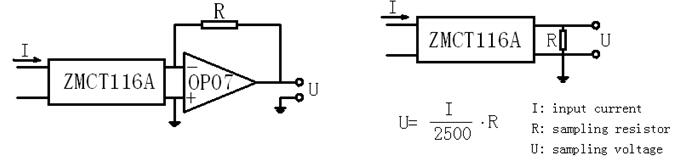

                                                       Figure Ⅰ                                          FigureⅡ

1. ZMCT116A used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor.

2. Empty pin can not be grounded.
