φ6.5mm PCB mounting current transformer 2000:1 40A

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers . Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT116C  Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement

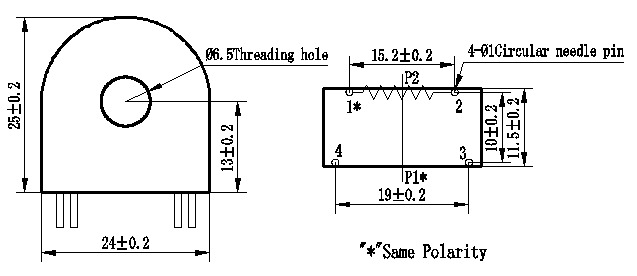

Structural parameters:


 Remarks:  Primary input: straight- through type( make the measured circuit be through the hole)

                     Secndary output:12pin    empty pins: 34pin

                           Front view                                 Bottom view


The main technical parameters

Model

ZMCT116C

input current

0~40Asampling resistor 5

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤20input 1Asampling resistor 5

current range

0~40Asampling resistor 5

linearity

0.2%5%dot~120%dot

Permissible error

-0.2%≤f≤+0.2%input 1Asampling resistor 5

isolation voltage

4500V

application

current and power measurement

Encapsulation

Epoxy

installation

PCB mountingPin Length>3mm

operating temperature

-40℃~+85℃


Direction for use

ZMCT116C-

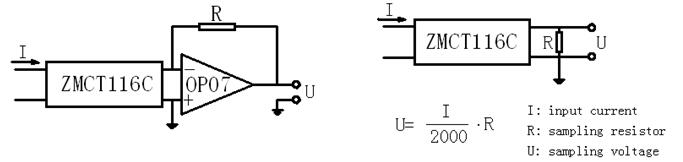

                                                                  Figure Ⅰ                                           FigureⅡ

1. ZMCT116C used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor.

2. Empty pin can not be grounded.
