φ7.5mm PCB mounting current transformer 1000:1 30A

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers . Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Model:
ZMCT118F
Brand:
ZEMING
Code:
8504311000
PDF:
ZMCT118F specification.pdf

Availability:



Inquire Add to Basket

Structural parameters

ZMCT118F Current Transformer

Small size，high accuracy，good consistency，for current and power measurement

Structural parameters:

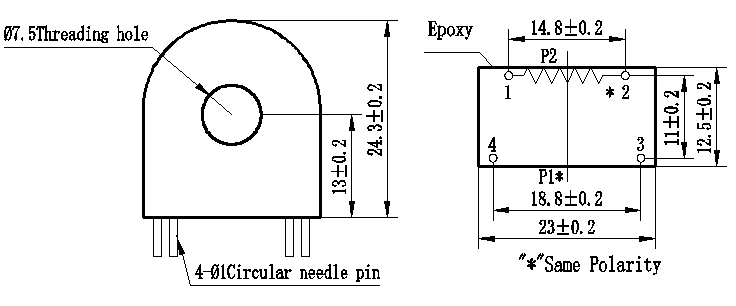

1、2pin: secondary output，3、4pin: empty pin

Front view Bottom view

The main technical parameters

model	ZMCT118F
input current	0~30A（sampling resistor 50Ω）
Rated output current	5mA at input 5A
turns ratio	1000:1
phase angle error	≤15＇（input 5A，sampling resistor 50Ω）
linear range	0~30A（sampling resistor 50Ω）
linearity	≤0.3%（5%dot~120%dot）
Permissible error	-0.3%≤ f ≤+0.3%（input 5A，sampling resistor 50Ω）
isolation voltage	4500V
application	Precise measurement of current and power
Encapsulation	Epoxy
installation	PCB mounting（Pin length>3mm）
operating temperature	-40℃~+85℃
