φ7.5mm PCB mounting current transformer 2000:1 80A

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers .Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT118G  Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement

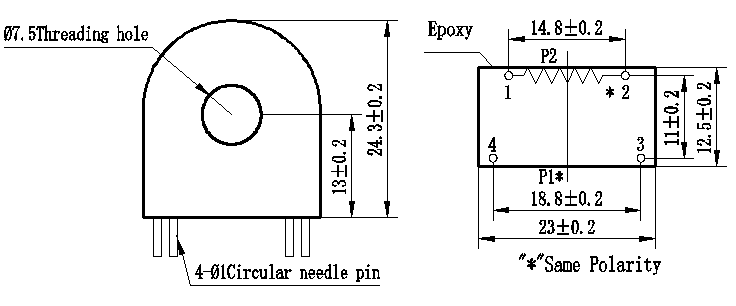

Structural parameters:


                                            12pin: secondary output34pin: empty pin

                            Front view                                            Bottom view


The main technical parameters

model

ZMCT118G

      input current

0~80Asampling resistor 5

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤60input 5Asampling resistor 5

linear range

0~80Asampling resistor 5

linearity

≤0.2%5%dot ~120%dot

Permissible error

-0.5%≤ f ≤+0.5%input 5Asampling resistor 5

isolation voltage

4500V

application

Current and power measurement

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40℃~+85℃


Direction for use

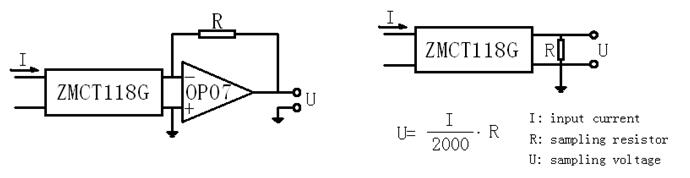

ZMCT118G-

                                                    Figure Ⅰ                                          FigureⅡ

1. ZMCT118G used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor.

2. Empty pin can not be grounded.
