φ5mm PCB mounting current transformer 1000:1

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers . Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved
Availability:

Dimensions

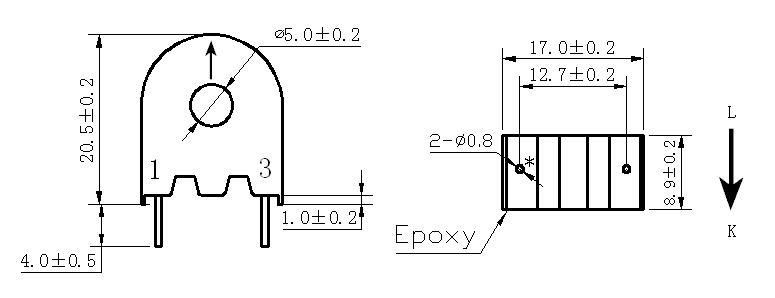

ZMCT206-1000A current transformer




                        Front view                                                   Bottom view





The main technical parameters

Model

ZMCT206-1000A

 input current

0-20A (10Ω)

Output current

10mA at 10A

turns ratio

1000:1

phase angle error

30'(input 10A, sampling resistor 10Ω

linearity

0.2%5%~120% of 10A

Permissible error

-0.2%≤f≤+0.2%input 10A, sampling resistor 10Ω

application

current and power measurement

isolation voltage

4000V, 50HZ, 60S

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40℃~+85℃

Storage temperature

-40℃~+125

Working frequency

50/60HZ

Approx. weight

5.5g


Direction for use:

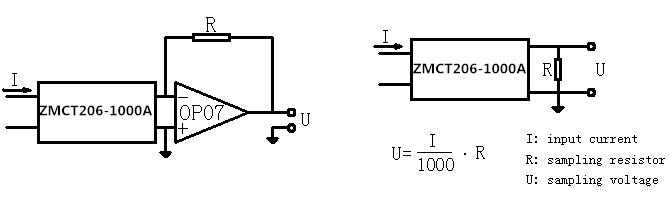

                        Figure Ⅰ                         FigureⅡ



1. The typical usage of the product is for the active output (Figure Ⅰ). R is a sampling resistor

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).


Material List


                                   ZMCT206-1000 Material List

Material

Spec, model

Manufacturer

UL code

SGS

CORE

Nanocrystalline strip

Ø9.5×13.0×5

XinDaKe

——

yes

Core box

PBT

Shanghao Zhang Dalong Plastic ELectric Co., Ltd

E332375

yes

Spongy cushion

 Ø9.5×13.0×5

 thickness 1.8

Shanghao Zhang Dalong Plastic ELectric Co., Ltd

——

yes

Tape

       Flame retardant,

Environmental protection,

V0 105 degrees.

PlasterYellow Glue

Jingjiang Yahua

E165111

yes


Enameled wire

2UEWØ0.09998

Elektrisola

E258243

yes

CASE

shell

SF-267

Environmental protection

Qingdao Qinke Engineering Plastics CO., Ltd

E238981

yes

Needle

Ø0.8×9×4.5

Shanghai Jiatong

——

yes


EPOXY

9201

Tianjin Xinqiao

E196959

yes


Solder

YTB101

Hangzhou Yatong

——

yes
