φ5mm PCB mounting current transformer 1500:1

ZMCT206-1500A mini Precise current transformer.
Small size, high accuracy, good consistency,Applied to the power frequency 50(60)Hz multifunction meter.
AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers

product datasheet

 ZMCT206-1500A Current Transformer

Small size,high accuracy,good consistency,for current and power measurement

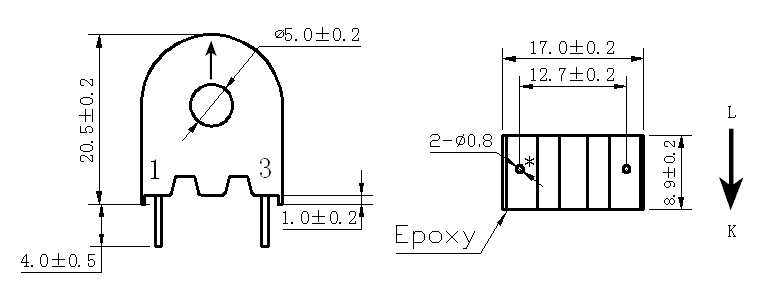

Structural parameter:


       Front view                                                                Bottom view

The main technical parameters:

Model

ZMCT206-1500A

 input current

0-10A (50Ω) /0-20A (30Ω)

Output current

4mA at 6A

turns ratio

1500:1

phase angle error

35'(input 6Asampling resistor 50Ω

linearity

0.5%5%dot~120%dot of 6A

Permissible error

-0.5%≤f≤+0.5%input 6Asampling resistor 50Ω

application

current and power measurement

isolation voltage

4000V, 50HZ, 60S

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40℃~+85℃

Storage temperature

-40℃~+125

Working frequency

50/60HZ

Approx. weight

5.69g



CIRCUIT SCHEMATIC




APPLICATIONS

      Applications include detection of branch circuit overload drop or shutdown

MATERIAL LIST

NO.

Material

Spec, model

UL code

SGS

1

Epoxy coated Nanocrystalline core

1K107, Ø9.5×13×5

——

yes

2

Enameled wire

(Winding wire)

2UEW Ø0.08, 1500T

E258243

yes

3

Tape

Flame retardant,

Environmental protection,

V0 105 degrees,

(Plaster)Yellow Glue

E165111

yes

4

Fills and seals material

TXH-9201-10 epoxy resin insulating compound

E196959

yes

5

Outer covering

SF-267

Environmental protection

E238981

yes

6

Cited Needle

Ø0.8×9×3.5

——

yes

7

Solder

YTB101

——

yes
