φ5mm PCB mounting current transformer 3000:1

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers . Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

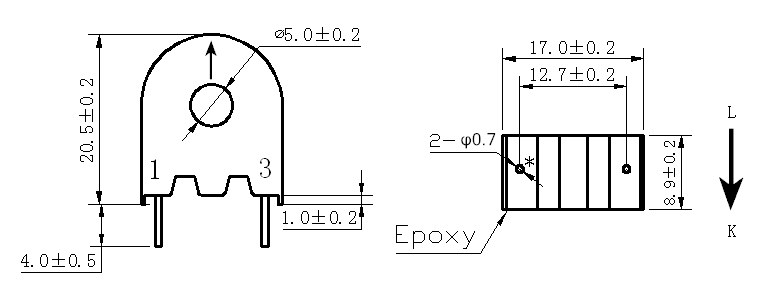

OUTLINE DIMENSIONS (UNIT: mm)

ZMCT206-3000 Current Transformer



OUTLINE DIMENSIONS (UNIT: mm):

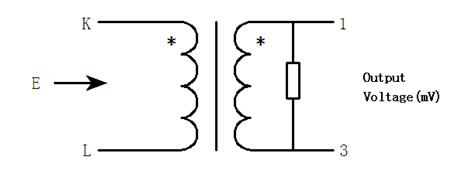

CIRCUIT SCHEMATIC

ZMCT206-3000-

ELECTRICAL CHARACTERSEIC

NO.

ITEM

MEASURED POINT

TECHHICAL DATA

REMARK

1

RATED   PRIMARY CURRENT


10A


2

RATED   SECONDARY CURRENT


3.33mA


3

LINEARITY   RANGE


0 TO 1.2 TIMES RATED   OUTPUT CURRENT

4

SECONDARY TURNS


3000:1

3000TS±6TS

5

OUTPUT   VOLTAGE

1-2

50mV±10%

AT15A  RL=10Ω

6

INDUCTANCE

1-2

85H MIN

AT 100HZ 0.1V

7

DC   RESISTANCE

1-2

350ΩMAX

AT25

8

FREQUECNCY


1--100KHZ


9

WHITSTAND   VOLTAGE

P-S

2500VAC 1mA 60S


10

INSULATION   RESISTANCE


500VDC   >100MΩ


11

ACCURACY


0.20%


12

OPERATING   TEMPERATURE


-20 Deg to + 70 Deg.


13

STORAGE   TEMPERATURE


-40 Deg to + 85 Deg.



MATERIAL LIST

NO.

Material

Spec, model

UL code

SGS

1

Epoxy coated Nanocrystalline   core

1K107, Ø9.5×13×5

——

yes

2

Enameled wire

(Winding wire)

2UEW Ø0.07, 3000T

E258243

yes

3

Tape

Flame retardant,

Environmental protection,

V0 105 degrees,

(Plaster)Yellow Glue

E165111

yes

4

Fills and seals   material

TXH-9201-10 epoxy   resin insulating compound

E196959

yes

5

Outer covering

SF-267

Environmental protection

E238981

yes

6

Cited Needle

Ø0.7

——

yes

7

Solder

YTB101

——

yes


APPLICATIONS

Applications include detection of branch circuit overload drop or shutdown.
